ANANKE Quick Grip Removable Tailgate Cargo Case Mounting System Patent Pending

1. PRODUCT OVERVIEW

ANANKE Quick Grip is a mechanically locking, gravity-assisted mounting system designed to securely attach suitcase-style cargo cases to the inside of a pickup truck tailgate, while transferring the working load into the truck bed—not the tailgate skin.

The system uses precision French cleat geometry, thin aluminum spring plates, and a controlled gravity gap to create a self-locking, theft-resistant interface that is removable only when the tailgate is open.

2. HOW THE SYSTEM WORKS

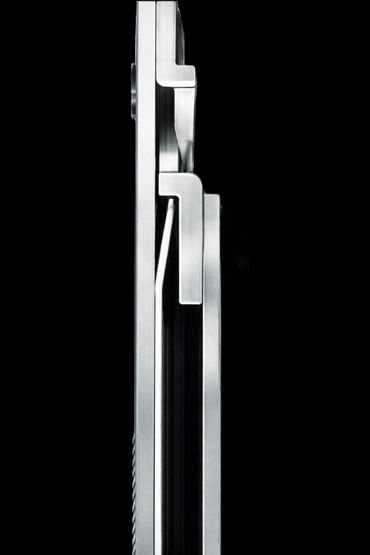

Spring-Loaded Cleat Engagement

• A 1/32” aluminum plate is intentionally used as a spring element.

• During installation, the cleat flexes slightly to enter the space between:

• The bumper block, and

• The truck-mounted cleat.

• Once past this point, the cleat returns to its neutral shape and locks into position.

Locking & Release Method

• After engagement, the cleats cannot disengage vertically.

• The system can only be released by a deliberate sideways sliding motion.

• When the tailgate is closed, this sideways motion is physically blocked.

Gravity Load Transfer (Critical Safety Feature)

• Once locked, the weight of the case naturally settles downward into the gravity gap.

• This causes the load to be:

• Carried by the truck bed,

• Not by the tailgate panel or hinges.

• When the tailgate is closed and locked, the case becomes mechanically trapped and immovable.

Result:

✔ Secure under load

✔ No rattling

✔ Theft-resistant without external locks

3. THEFT-RESISTANT OPERATION

When the tailgate is:

• Open → the system can be intentionally slid sideways and removed

• Closed & locked → the system cannot move, lift, or disengage

No exposed fasteners, latches, or locks are accessible when the tailgate is closed.

4. COMPATIBILITY

• Designed to fit most suitcase-style cargo cases

• Compatible with most pickup truck tailgates

• Universal design (case and tailgate geometry dependent)

5. MATERIAL SPECIFICATIONS

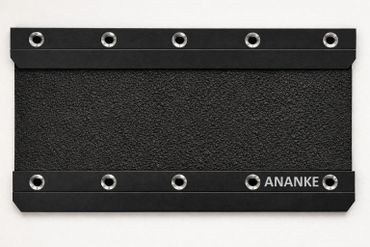

• 1/32” Aluminum Plate

(spring plate / case back / O-ring retention)

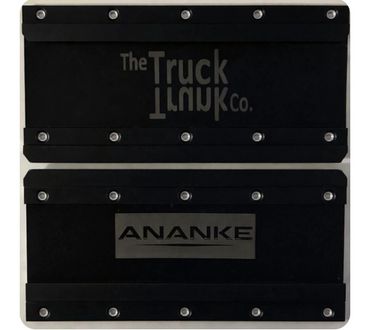

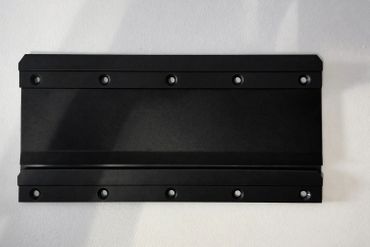

• 1/32” Aluminum Plates

(tailgate mounting plate)

• French Cleats (x4)

Precision-formed locking geometry

6. KIT CONTENTS

Each ANANKE™ Quick Grip kit includes:

• 3 × Aluminum Plates

• 4 × French Cleats

• 12 × Rivets

• 12 × O-Rings

• 1 × Drill Bit

• Installation Instructions

⏱ Typical installation time: ~15 minutes

7. INSTALLATION NOTES (IMPORTANT)

• Ensure all plates are mounted square and level

• Do not exceed the vertical centerline of the case

• Verify that the gravity gap is unobstructed

• Confirm full engagement before loading cargo

⚠️ LEGAL DISCLAIMER & LIMITATION OF LIABILITY

IMPORTANT – READ BEFORE INSTALLATION

ANANKE™ Quick Grip is an aftermarket mounting system. By installing or using this product, the user acknowledges and agrees to the following:

Installation Responsibility

• Installation is performed entirely at the user’s own risk.

• Improper installation may result in equipment damage, vehicle damage, or personal injury.

• The installer is solely responsible for verifying:

• Structural integrity of the mounting surface

• Proper fastener installation

• Load suitability

Load & Use Disclaimer

• Do not exceed the load limits of:

• The cargo case manufacturer

• The vehicle manufacturer

• This product is not rated for dynamic impacts, collisions, or off-label use.

Vehicle Damage

The Truck Trunk Company Ltd. and its owners, officers, and affiliates:

• Are not responsible for any damage to:

• Tailgates

• Vehicle bodies

• Hinges

• Paint

• Bed liners

• Cargo cases

• Including damage resulting from:

• Improper installation

• Overloading

• Misuse

• Vehicle operation

No Liability for Loss or Theft

• While the system is designed to be theft-resistant, no product is theft-proof.

• The manufacturer assumes no responsibility for loss, theft, or damage to mounted equipment or contents.

Modification Warning

• Any modification to the product voids all warranties and liability protections.
